Compact and practical direct-type surgical microscope designed for ENT, gynecology and general surgery. Features 10W LED coaxial illumination and 36W high-quality imported power adapter for safe, reliable operation. Ideal for outpatient procedures. Factory-direct from Imagex Meditech, CE/ISO certified.Keywords:

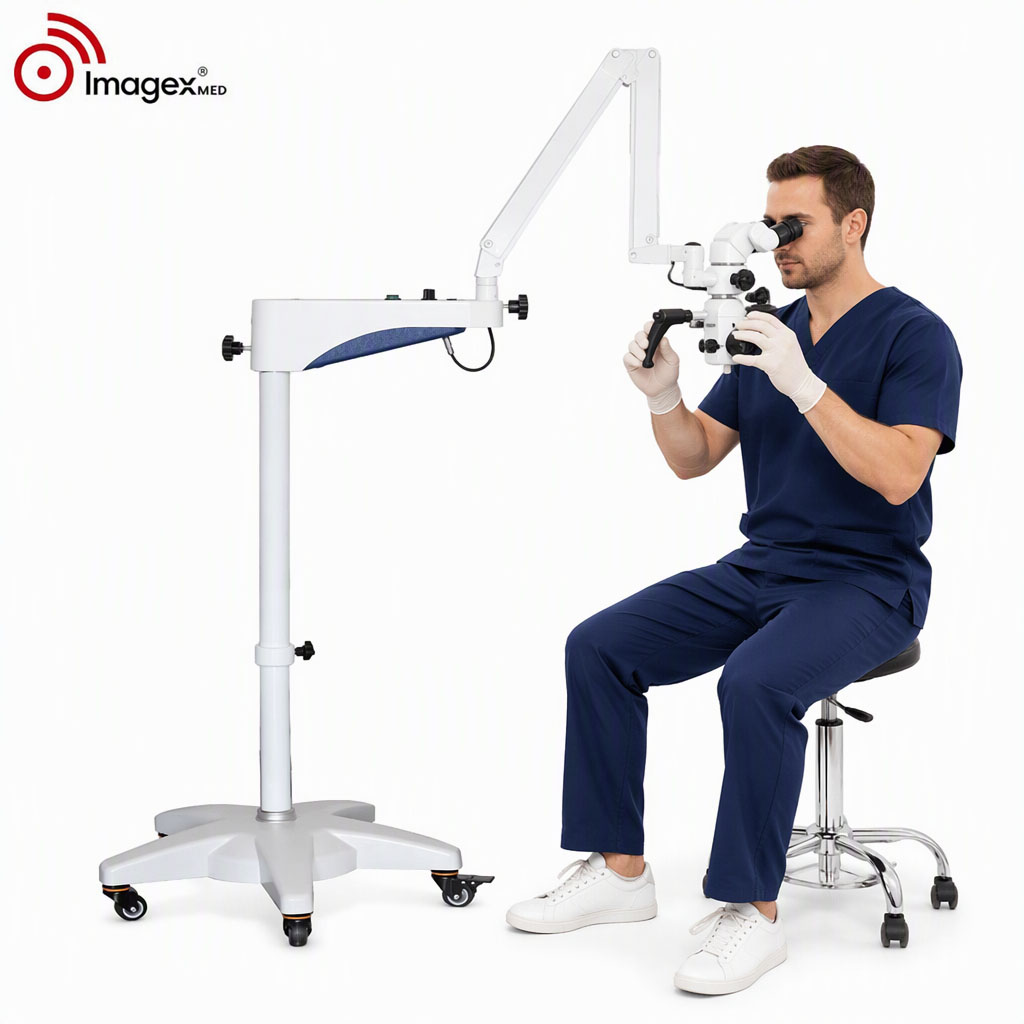

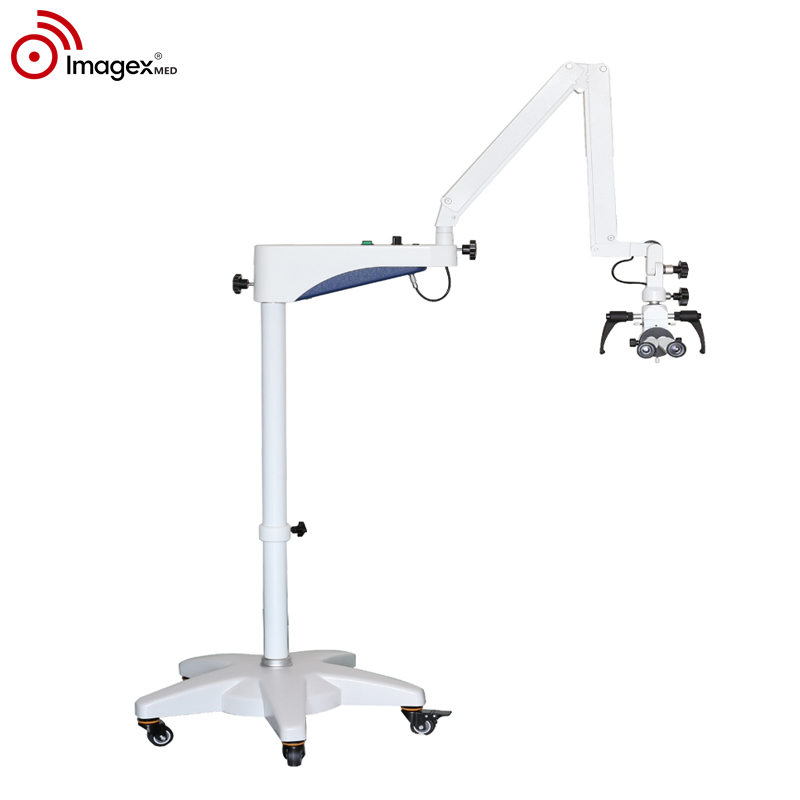

direct-type operation microscope, ENT surgical microscope, gynecology surgical microscope, 10W LED coaxial illumination microscope, compact surgical microscope, outpatient surgical microscope, imported power adapter microscope, YSX series, surgical microscope manufacturer ChinaYSX-101 Operation Microscope is simple and practical, easy to operate, compact and flexible. The new LED coaxial lighting provides you with the best par-focus, clear and clear three-dimensional image. Widely used in other surgical departments such as ENT, dentistry, orthopedics, etc.

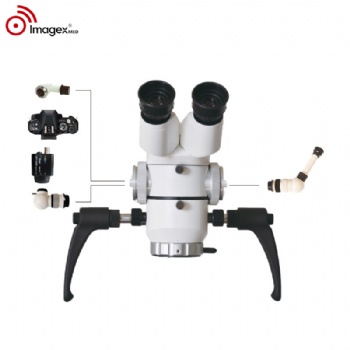

Optional: wall-mounted bracket, desktop bracket
| Performance Parameters of Operation Microscopes series（Specifications are subject to change.Please confirm before ordering） | |||||
| Model | YSX101 | YSX102 | YSX120 | YSX130 | YSX180(12.5XEyepiece) |
| Observation angle | Straight | 45°inclined | Straight | 45°inclined | 0-180°Variable angle binocular tube |
| Magnificating rate of obvervation tube | 6X | 8.3X | |||
| Rang of Pupillary distance | 50mm-80mm | 49mm-80mm | |||
| Diopter adjustment range | ±5D | ||||
| Fixe-focus large objective lens | F=200mm and F=250mm; with fine adjustment device, adjustment range ±10mm | ||||
| Magnification changer | Three gear zoom: 0.6X, 1X, 1.6X | ||||
| Total magnification | 16mm-81mm | 13mm-66mm | 16mm-81mm | 13mm-66mm | 15mm-80mm |
| Linear field | 2.4X-12X | 3X-16X | |||
| Beamsplitter | No Nil | Splitter 2:8 (optional 5:5) | |||
| Camera adapter | No Nil | Can be connected to C-mount 1/3 inch CCD camera | |||
| Illumination system | Coaxial LED lighting, adjustable brightness, illuminance＞40,000LX, lifespan＞50,000 hours | ||||
| Filter | Built-in green and orange filters | ||||
| Balanced arm | 2 arms, with universal adjustment | 2 arms, with universal adjustment, adjustable weight and lock | |||
| Fool stand | Two-section column, five-star base | ||||
| Input power | Adapter output: DC12V/3A; power: 36W | ||||
| Weight per unit | 59KG (1 set and 2 boxes) | 63KG (1 set and 2 boxes) | 64KG (1 set and 2 boxes) | ||
