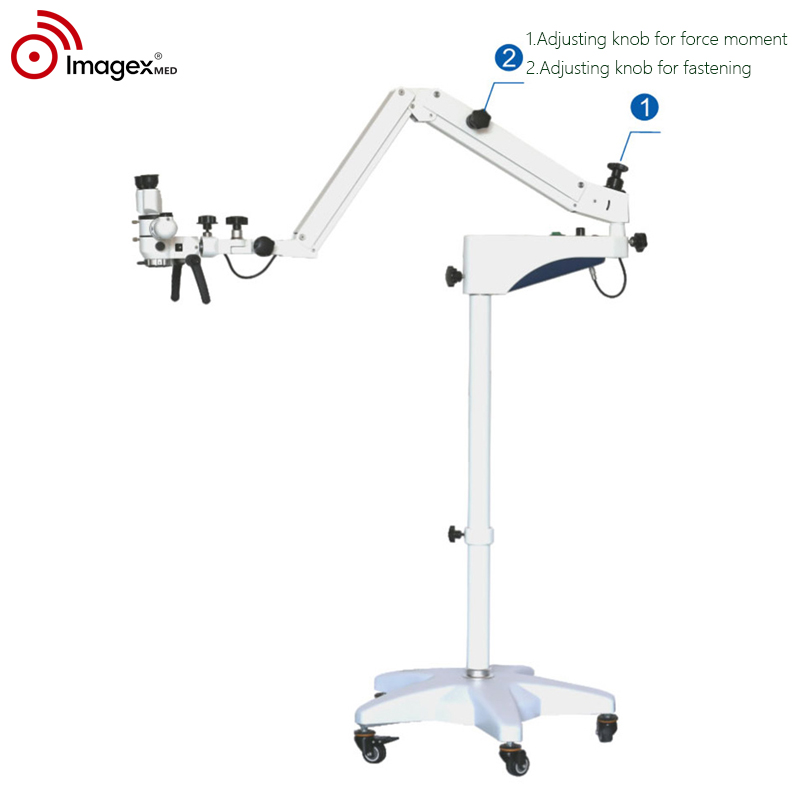

Direct-type surgical microscope for ENT, gynecology and general surgery. Standard equipped with beam splitter and CCD camera adapter for real-time imaging. Features counterbalance arm with torque adjustment knob and locking knob for stable positioning at any angle. Compact, flexible and reliable.Keywords:
YSX-120 direct-type surgical microscope, ENT operation microscope, gynecology surgical microscope, beam splitter surgical microscope, CCD camera adapter microscope, counterbalance arm microscope, torque adjustment microscope, locking knob microscope, outpatient surgical microscope, Imagex Meditech YSX seriesYSX-120 Operation Microscope is simple and practical, easy to operate, compact and flexible. The new LED coaxial lighting provides you with the best par-focus, clear and clear three-dimensional image. Widely used in other surgical departments such as ENT, dentistry, orthopedics, etc.
| Performance Parameters of Operation Microscopes series（Specifications are subject to change.Please confirm before ordering） | |||||
| Model | YSX101 | YSX102 | YSX120 | YSX130 | YSX180(12.5XEyepiece) |
| Observation angle | Straight | 45°inclined | Straight | 45°inclined | 0-180°Variable angle binocular tube |
| Magnificating rate of obvervation tube | 6X | 8.3X | |||
| Rang of Pupillary distance | 50mm-80mm | 49mm-80mm | |||
| Diopter adjustment range | ±5D | ||||
| Fixe-focus large objective lens | F=200mm and F=250mm; with fine adjustment device, adjustment range ±10mm | ||||
| Magnification changer | Three gear zoom: 0.6X, 1X, 1.6X | ||||
| Total magnification | 16mm-81mm | 13mm-66mm | 16mm-81mm | 13mm-66mm | 15mm-80mm |
| Linear field | 2.4X-12X | 3X-16X | |||
| Beamsplitter | No Nil | Splitter 2:8 (optional 5:5) | |||
| Camera adapter | No Nil | Can be connected to C-mount 1/3 inch CCD camera | |||
| Illumination system | Coaxial LED lighting, adjustable brightness, illuminance＞40,000LX, lifespan＞50,000 hours | ||||
| Filter | Built-in green and orange filters | ||||
| Balanced arm | 2 arms, with universal adjustment | 2 arms, with universal adjustment, adjustable weight and lock | |||
| Fool stand | Two-section column, five-star base | ||||
| Input power | Adapter output: DC12V/3A; power: 36W | ||||
| Weight per unit | 59KG (1 set and 2 boxes) | 63KG (1 set and 2 boxes) | 64KG (1 set and 2 boxes) | ||
